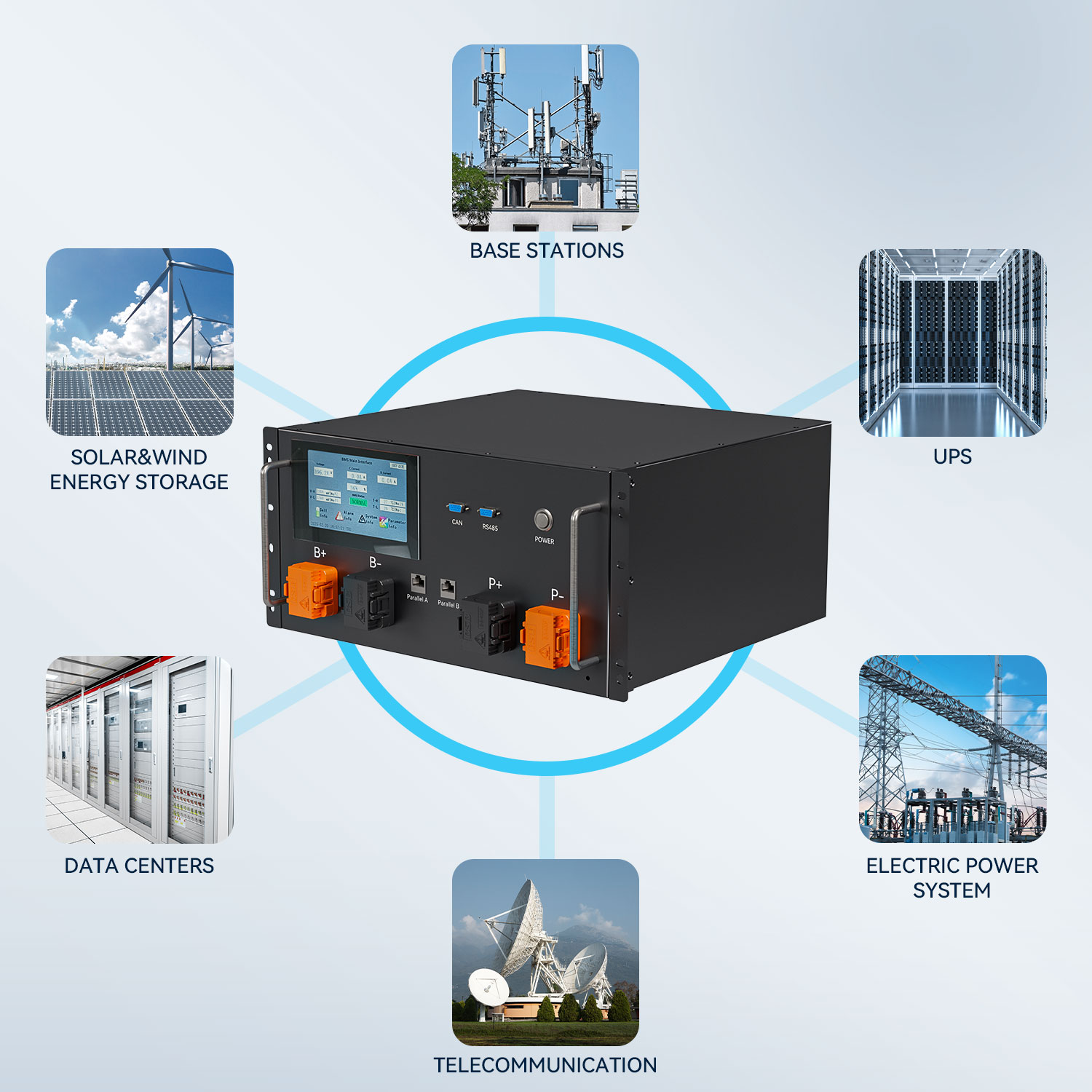

Designed for telecom equipment backup power and household energy storage systems, it offers outstanding safety, high energy density, long life, excellent temperature performance, and eco-friendly power generation.
With the added convenience of an LCD display, users can effortlessly check battery status at any time. Additionally, the battery offers seamless information monitoring via its exceptional RS232/485 communication function when connected to a computer.
Choose NPP for reliable and advanced energy solutions.
| Battery_Model | Rated Voltage | Rated Capacity | Discharge Current | Peak Discharge Current | Cut off Discharge Voltage | Charge Voltage | Charge Current | Weight (KG) | Dimenison (LxWxH) mm | Height** |
| LFR25.6-100 | 25.6V | 100Ah | 100A | 300A | 22.4V | 29.2V | 20A | 26.9 | 442x420x133 | 3U |
| LFR25.6-200 | 25.6V | 200Ah | 100A | 300A | 22.4V | 29.2V | 40A | 46.3 | 442x420x133 | 3U |
| LFR51.2-100 | 51.2V | 100Ah | 100A | 300A | 44.8V | 58.4V | 20A | 46.0 | 442x420x133 | 3U |
| LFR51.2-200 | 51.2V | 200Ah | 100A | 300A | 44.8V | 58.4V | 40A | 85.0 | 442*720*178 | 4U |
| LFR51.2-280 | 51.2V | 280Ah | 100A | 300A | 44.8V | 58.4V | 50A | 115.0 | 442*720*178 | 5U |
*The LFR series range includes but is not limited to the above models! Please contact us for more information.
**Rack Unit: 1U = 44.45 mm (EC 60297-3-108:2014)

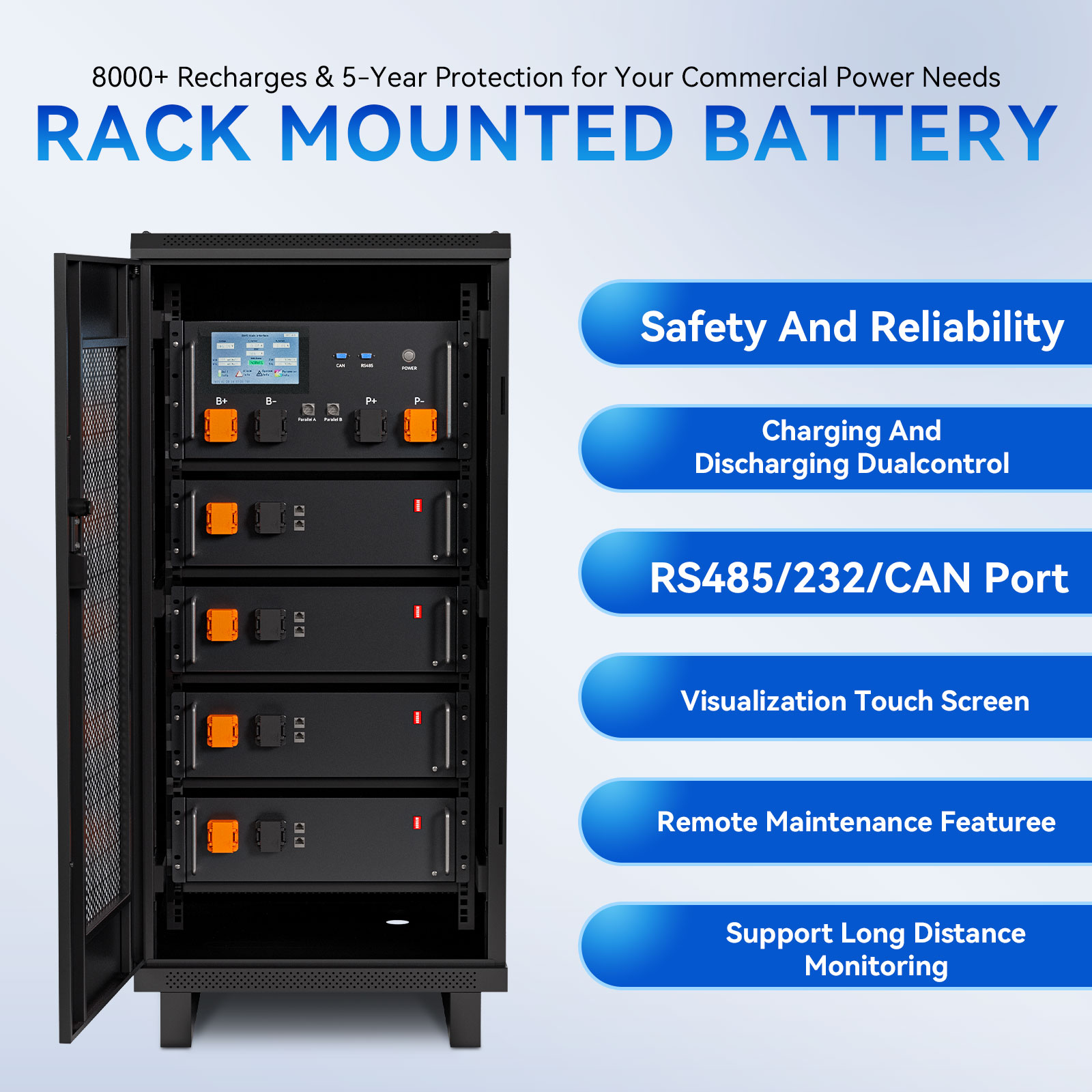

Rack mounted batteries are designed for parallel stacking in order to create high-capacity battery banks for power storage from renewable energy sources. these batteries are designed to be mounted directly onto a telecom serve rack, providing power for your home application and keeping your business running during any power outage.
